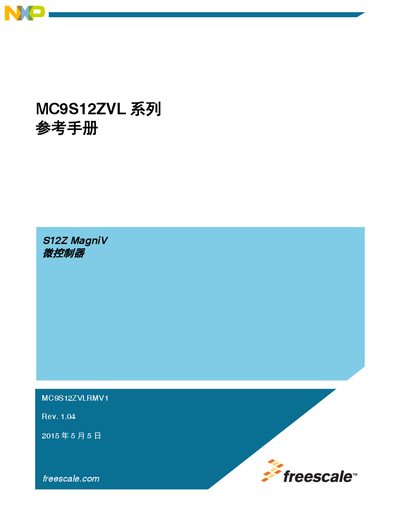

The Freescale MC9S12ZVL Reference Manual provides detailed information on the microcontroller’s features, architecture, modules, and operation.
This reference manual covers the MC9S12ZVL series microcontroller, describing its safety‑related design built to the ISO26262 standard and providing complete module information except the S12Z CPU. It includes sections on device overview, peripheral modules, electrical specifications, and programming details.
The document is organized into chapters for each hardware block such as ports, memory mapping, debug controller, interrupt controller, ADC, timers, PWM, serial interfaces, LIN PHY, flash memories, and power management, followed by an appendix with electrical specifications.
| ADC resolution | 10‑bit |
|---|---|
| ADC channel count | 10 external, 8 internal channels |
| LIN physical layer standard | SAE J2602‑2 |
| SPI data size options | 8‑bit or 16‑bit |
It is designed for safety‑related systems using the ISO26262 standard.
The ADC provides up to 10 external channels and 8 internal channels.
It conforms to the SAE J2602‑2 LIN standard.
