This datasheet details the MC9S08AC60 series 8-bit HCS08 microcontrollers, covering specifications for CPU, memory, peripherals, and electrical characteristics.

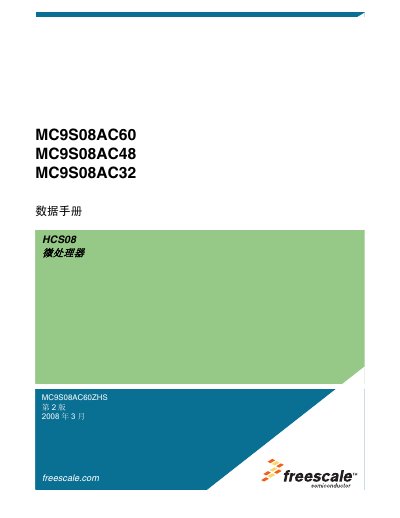

This document is the data sheet for the Freescale MC9S08AC60 Series microcontrollers, which includes the MC9S08AC60, MC9S08AC48, and MC9S08AC32 devices. It provides comprehensive technical details for developers and engineers regarding the 8-bit HCS08 CPU, memory architecture, clock sources, system protection features, and power-saving modes.
The datasheet covers various peripheral devices including the ADC, SCI, SPI, IIC, timers, and keyboard interrupt module. It also details the operating modes, reset and interrupt handling, and provides specific electrical characteristics and timing specifications in the appendices. This manual is written in Chinese.
| CPU Frequency | 40 MHz |
|---|
The series includes the MC9S08AC60, MC9S08AC48, and MC9S08AC32.
The maximum CPU frequency is 40 MHz.
