FD-70/70A Molecular Pump Controller User Manual

This manual covers the technical specifications, working principles, operation methods, communication protocols, troubleshooting, and warranty for the…

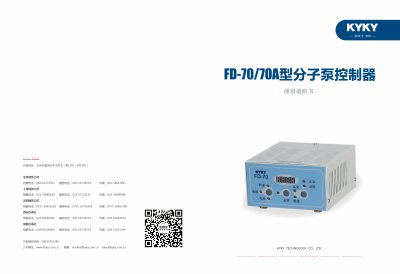

FD-70/70A Molecular Pump Controller User Manual - cover page
Document type
User Manual
Language
Chinese
Pages
6
File format
PDF
File size
1.1 MB
Published
18 October, 2026
Updated
18 October, 2026
MD5 checksum
C6A7190CFB8AB7A654849DFFB4ED4B1C
PDF
FD-70/70A Molecular Pump Controller User Manual PDF

About this manual

The FD-70/70A is an electronic commutator designed for high-speed brushless DC motors, specifically tailored for use with FF-70 composite molecular pumps. It utilizes a dsPIC4011 microcontroller and single Hall technology to drive the motor, featuring automatic acceleration capabilities. This manual is written in Chinese.

What's inside

  • Technical Performance
  • Working Principle
  • Usage Method
  • External Communication Interface
  • Serial Port Protocol
  • Troubleshooting

Specifications

Maximum Output Power80W
High Speed Frequency845Hz±2Hz
Low Speed Frequency705Hz±2Hz
Acceleration Time3 minutes

Frequently asked questions

What is the communication protocol baud rate?

The communication baud rate is 9600 bit/S with an 8.1.1 format and half-duplex mode.

What does the 'Ot' fault code indicate?

The 'Ot' code indicates a timeout due to high pressure (P ≥ 1mbar) or failure of the output tubes.

What does the 'Oh' fault code indicate?

The 'Oh' code indicates that the motor is overheating and the controller has activated thermal protection.

Download PDF (1.1 MB)
