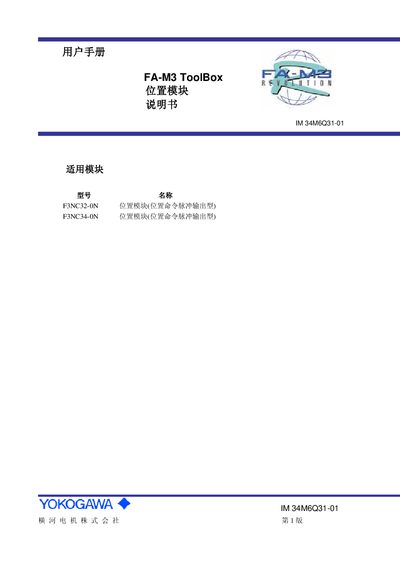

This document is a user manual for the FA-M3 ToolBox position module, which introduces the applicable modules, models, precautions for use, and product protection and safety.
The manual describes the purpose, safety precautions, and required environmental conditions for using the FA‑M3 Toolbox location module. It emphasizes proper grounding, avoidance of unauthorized modifications, and compliance with CE safety requirements.
The document is organized into three parts: Part A covers installation steps and required accessories, Part B explains the operation sequence, parameter setting and download/upload procedures, and Part C provides reference information and limitation notes. Throughout, the manual references model numbers such as SF662‑ECW and the document identifier IM 34M6Q31‑01. This manual is written in Japanese.
| Operating temperature | 0 °C to 55 °C |
|---|---|
| Relative humidity | 10 % to 90 % RH |
| External cable temperature rating | 75 °C |
| Grounding terminal designation | FG |
| Model number | SF662‑ECW |
| Document number | IM 34M6Q31‑01 |
Connect the device’s grounding terminal labelled “FG” to a low‑impedance ground to meet CE requirements and ensure safe operation.
