Emerson TDS-PA01 Fieldbus Adapter User Manual

The manual provides installation, wiring, communication setup, and troubleshooting instructions for the Emerson TDS-PA01 fieldbus adapter.

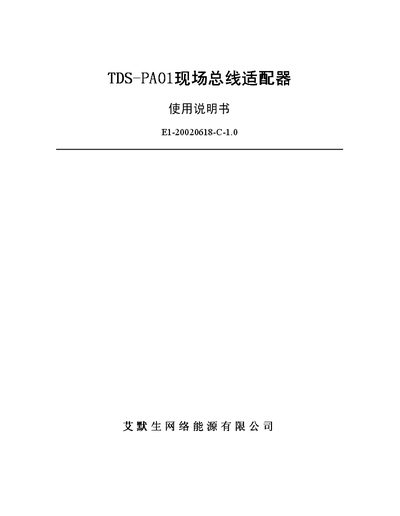

Emerson TDS-PA01 Fieldbus Adapter User Manual - cover page
Brand
Emerson
Document type
User Manual
Language
Chinese
Pages
41
File format
PDF
File size
457 KB
Updated
30 September, 2026
Model
TDS-PA01
MD5 checksum
3CCC2C692C67B3A18DCF44EB37E9392E
PDF
Emerson TDS-PA01 Fieldbus Adapter User Manual PDF

About this manual

This user manual describes the Emerson TDS-PA01 fieldbus adapter, a PROFIBUS‑DP compatible module designed for Emerson inverters. It covers safety precautions, unpacking, and the physical layout of the device.

The document details wiring diagrams, configuration of communication parameters, LED status indicators, and fault‑diagnosis procedures, along with technical data and environmental specifications. This manual is written in Chinese.

What's inside

  • Preface
  • Series Models and Specifications
  • Installation and Wiring
  • Profibus DP Overview
  • Communication Parameter Configuration
  • Troubleshooting
  • Technical Data
  • Environmental Conditions
  • Profibus Parameters

Specifications

EMC requirement9.6K
DP interface baud rate9.6K
RS485 interface baud rate125 kbps
Input voltage24V DC, 150 mA
Protection ratingIP20
Operating temperature10 °C to +50 °C
Storage temperature20 °C to 60 °C

Frequently asked questions

What do the three status LEDs on the TDS-PA01 indicate?

The adapter has LEDs labeled RUN, RS485, and PROFIBUS that show power status, RS485 communication status, and PROFIBUS communication status respectively.

Which Emerson inverter series are compatible with the TDS-PA01 adapter?

The TDS-PA01 can be used with the TD1000, TD2000, TD2100, and TD3000 series inverters.

Download PDF (457 KB)
