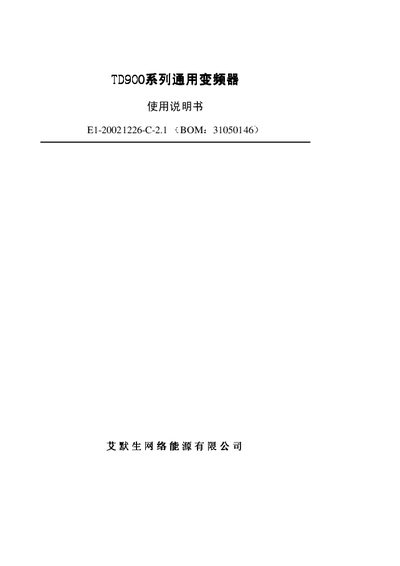

The TD900 series inverter is a high-quality, multifunctional, low-noise inverter produced by Emerson Network Power. This manual introduces the composition, installation wiring, functional parameters, daily use, maintenance, and troubleshooting of the series inverters.
The manual begins with safety regulations and an overview of the TD900 series variable frequency drive, describing hazards, grounding requirements, and environmental considerations. It also introduces the product line, model identification, and key technical specifications.
Subsequent sections cover step‑by‑step installation and wiring, detailed operation instructions, function code tables, parameter settings, maintenance procedures, fault handling, and warranty information, helping installers, maintenance staff, and designers use the drive safely and effectively. This manual is written in Chinese.
| Rated Power | 2.2 kW |
|---|---|
| Input Voltage | 3PH AC 380V~460V |
| Output Voltage | 3PH AC 0~460V |
| Frequency Range | 0–650 Hz |
| Protection Level | IP20 |
The TD900 series VFD has a protection level of IP20.
In typical applications the VFD should be opened for cleaning and inspection every 1–3 months.
The warranty period is eighteen months from the manufacturing date.
