Adapt series 1-3KVA UPS provides high reliability, high efficiency, green and environmental protection power supply solutions for small machine rooms, network spaces, office terminals, servers, workstations, communication node devices, laboratory equipment, monitoring instruments, automatic control equipment, etc.
The Emerson Adapt series UPS provides online double‑conversion power protection for critical business loads up to 3 kVA. It features high input power factor (0.99), energy‑efficient digital control, and a configurable intelligent fan for low noise operation.

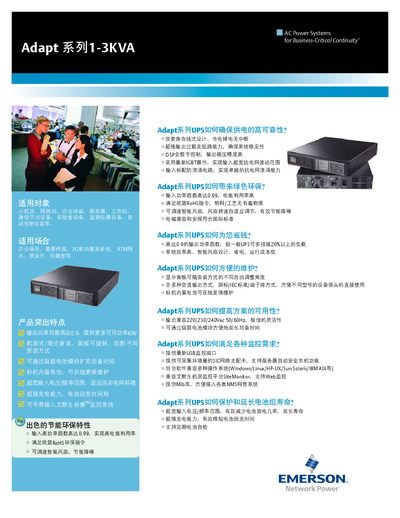

The manual covers input and output parameters, battery module options, network monitoring (SIC, Modbus, SiteMonitor), installation guidelines, and warranty information, helping users configure and maintain the system safely. This manual is written in Chinese.
| Input Voltage Range | 120 Vac‑280 Vac |
|---|---|
| Input Frequency Range | 40 Hz‑70 Hz |
| Input Power Factor | 0.99 |
| Output Power Factor | up to 0.9 |
| Efficiency | up to 90 % |
| Switching Time | 0 ms |
| Output Voltage Options | 220‑240 Vac (selectable) |
| Battery Backup Time (minimum) | ≥4 minutes |
The UPS accepts an input voltage between 120 Vac and 280 Vac.
The 1‑2 KVA model includes 8 pieces of 12 V batteries.
The system can achieve up to 90 % efficiency.
Yes, it provides SIC network monitoring cards, Modbus cards, and is compatible with Emerson SiteMonitor software.
