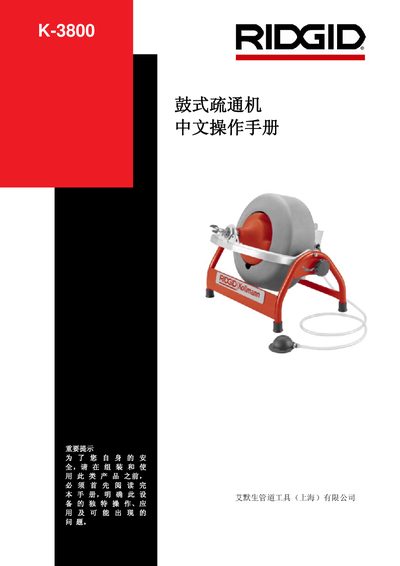

This document is the Chinese operation manual for the K-3800 drum machine. It provides information on safety precautions, workplace safety considerations, electrical safety, personal safety precautions, tool usage and maintenance, service, safety during use of the drain cleaner, product overview, technical specifications and standard configuration, accessories, machine assembly, operating procedures, special operation instructions, accessories, maintenance guidance, repairs and service, troubleshooting, etc.
The RIDGID K-3800 drum auger is designed for clearing pipes up to 4" (100 mm) in diameter and up to 100 ft (30 m) in length. It can use 3/8" × 100 ft, 1/2" × 90 ft, or optional 5/16" × 50 ft steel cables, driven by a 1/10 HP universal motor.
The manual covers safety precautions, proper grounding, personal protective equipment, machine assembly, manual and automatic feed operation, reverse operation, maintenance, fault diagnosis, wiring diagram, and warranty information. Following these instructions helps ensure safe and effective use of the equipment. This manual is written in Chinese.
| Weight (machine body) | 35 lbs (15.9 kg) |
|---|---|
| Maximum pipe length | 100 ft (30 m) |
| Standard steel cable sizes | 3/8" × 100 ft and 1/2" × 90 ft |
| Optional basin cable drum | 5/16" × 50 ft |
| Motor power | 1/10 HP universal motor |
| Minimum wire gauge (0‑6 ft) | 18 AWG |
