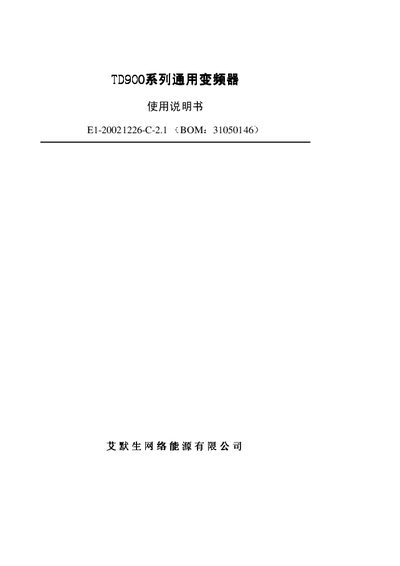

This manual covers the safe installation, wiring, and commissioning of the Emerson TD900 series variable frequency drive. It includes detailed safety rules, wiring diagrams, and step‑by‑step installation procedures for qualified personnel.
The document also describes the drive’s functional parameters, typical applications, fault troubleshooting, maintenance tasks, and warranty information, helping users operate and maintain the TD900 VFD effectively. This manual is written in Chinese.
| Power rating | 2.2 kW |
|---|---|
| Input voltage | 380 V ~ 460 V (3‑phase) |
| Output frequency range | 0 ~ 650 Hz |
| IP protection rating | IP20 |
The drive has an IP20 protection rating when the keyboard panel or display unit is installed.
The warranty covers the drive body for eighteen months from the manufacturing date.
