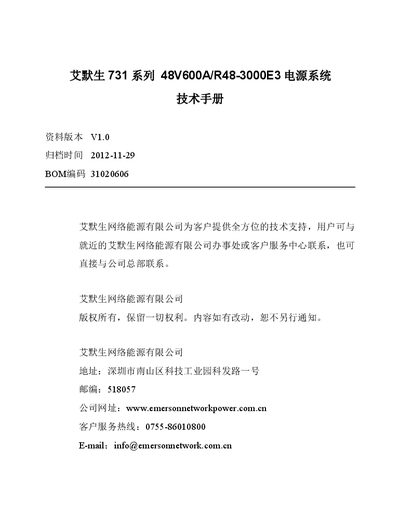

The Emerson NetSure731 48V600A/R48-3000E3 Power System Technical Manual provides system overview, configuration options, specifications, and installation…
This technical manual describes the NetSure731 48V600A/R48-3000E3 power system, covering its architecture, rectifier and monitoring modules, AC/DC distribution units, and engineering design references. It includes detailed system features such as lightning protection, over‑voltage protection, load‑down and battery low‑voltage protection, and remote monitoring capabilities.
The document also lists the technical parameters of the system, including input voltage range, output voltage, current capacity, efficiency, power factor, and environmental limits, as well as wiring and connection specifications for installation and maintenance. This manual is written in Chinese.
| Output Voltage | -42 to -58 Vdc |
|---|---|
| Maximum Output Current | 0 to 600 A |
| Power Factor | ≥ 0.99 |
| Operating Temperature | -5 to 40 °C |
The system accepts an input voltage range of 85 V to 290 V AC.
The system provides lightning protection, AC input over‑voltage protection, and load‑down and battery low‑voltage protection.
Up to eight rectifier modules can be installed.
The power factor is at least 0.99.
