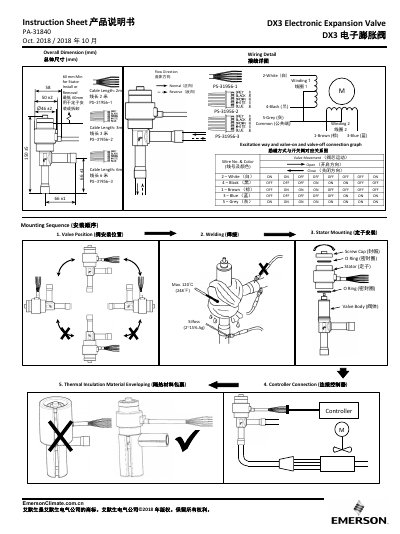

Instruction sheet for Emerson DX3 PA-31840 electronic expansion valve with installation, wiring, and safety guidelines.
This instruction sheet provides detailed mounting, wiring, and safety procedures for the Emerson DX3 PA-31840 electronic expansion valve. It includes guidance on valve positioning, welding, controller connection, cable lengths, and thermal insulation.
The document also lists hazardous substance content for each component and outlines compliance with relevant standards. Technical data such as maximum operating temperature, dimensions, and cable specifications are provided for proper system integration. This manual is written in Chinese.
| Maximum Operating Temperature | 120 °C (248 °F) |
|---|---|
| Original Control Cable Length | 2 m |
| Extended Control Cable Length | up to 6 m |
| Cable Temperature Rating | -25 °C to +80 °C |
The valve can operate up to 120 °C (248 °F).
The original control cable length is 2 meters.
Yes, the control cable can be extended up to a total of 6 meters, using UL2464 0.34 mm² cable.
The sheet lists lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr +6), PBB, PBDE, copper alloys, steel, stainless steel, plastic, rubber, and magnetic materials.
