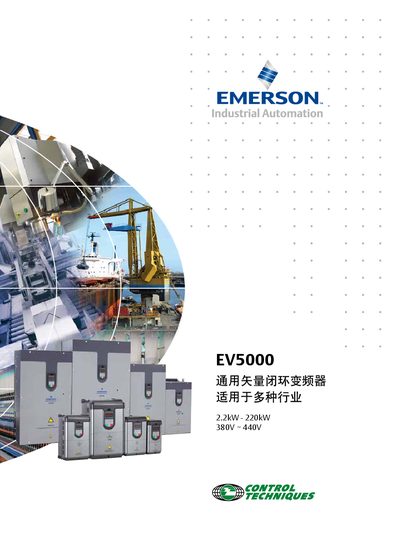

The Emerson EV5000 variable vector closed-loop inverter manual provides specifications, installation, operation, and customization options for power ranges…
The EV5000 is a general‑purpose variable vector closed‑loop inverter designed for a wide range of industrial applications such as hoisting machinery, textile machines, machine tools and packaging equipment. It delivers power from 2.2 kW up to 220 kW and supports input voltages of 380 V‑440 V.
This manual covers the inverter’s control functions, wiring diagrams, mechanical dimensions, optional accessories, and detailed installation instructions. It also lists technical specifications, braking features, and configuration options for PG and non‑PG vector control, V/F control, and various communication modules. This manual is written in Chinese.
| Power range | 2.2 kW – 220 kW |
|---|---|
| Input voltage | 380 V – 440 V |
| Control modes | No‑PG vector, PG vector, V/F control |
| Modulation type | Space vector PWM |
| Starting torque (1 Hz) | 150 % of rated torque |
| Frequency range | 0 Hz – 600 Hz |
| Speed accuracy (no PG) | ±0.5 % of rated synchronous speed |
| Speed accuracy (PG) | ±0.2 % of rated synchronous speed |
| Frequency accuracy (digital) | ±0.01 % of max frequency |
| Frequency resolution (digital) | 0.01 Hz |
It supports power from 2.2 kW up to 220 kW.
The inverter operates on an input voltage of 380 V to 440 V.
It offers no‑PG vector control, PG vector control, and V/F control.
The inverter can output frequencies from 0 Hz up to 600 Hz.
