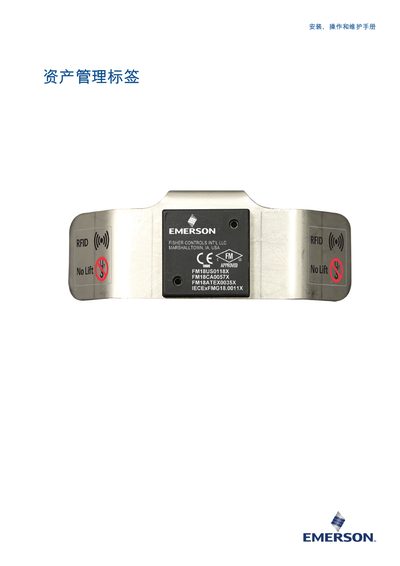

Installation, operation, and maintenance guide for Emerson Asset Management Tags with specifications, safety instructions, and part ordering information.
This manual provides comprehensive guidance for installing, operating, and maintaining Emerson Asset Management Tags. It covers safety precautions, required tools, and step‑by‑step installation methods for membrane‑head, bracket, and universal mounting options.
The document also lists product specifications, certification details, and part numbers for ordering replacements. It references the Asset Connect software for reading and writing tag data via UHF RFID and Bluetooth connections. This manual is written in Chinese.
| Operating temperature range | -40°C to 85°C |
|---|---|
| Storage temperature range | -40°C to 90°C |
| Operating frequency | 860‑960 MHz (global) |
| Tag housing material | PPS (polyphenylene sulfide) |
| Bracket material | 316 stainless steel |
| Screw material | Steel meeting RoHS zinc‑chromate standard |
| Installation methods | Membrane‑head, bracket, universal mounting |
| Read range | 20 ft (6.09 m) |
| Write range | 1 ft (0.30 m) |
| Electrical classification | 4X, IP68 |
| Standards compliance | UHF EPC Class 1 Gen 2, ISO/IED 18000‑6C, GS1 EPC TDS 1.6, ATA Spec 2000, SAE AS5678, DIN 40050‑9 |
The tag operates from –40 °C to 85 °C.
The typical read range is up to 20 ft (6.09 m).
The housing is made of PPS (polyphenylene sulfide) and the bracket is 316 stainless steel.
