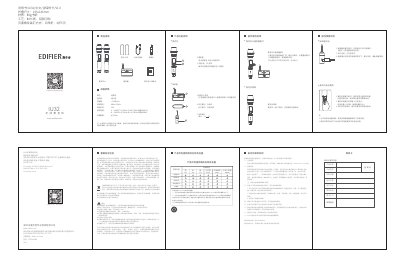

The Edifier EDF180034 microphone user manual provides safety guidelines, operation instructions, specifications, and warranty information.
This manual explains safe usage of the EDF180034 wireless microphone, including temperature limits (0‑35 °C recommended, performance limited below +5 °C) and precautions such as avoiding water, heat sources, and improper battery handling. It also details the warranty terms and how to properly recycle the device.
Operating instructions cover power on/off (long‑press 2 seconds), pairing (pre‑paired at factory; to re‑pair, turn on the receiver first), battery status (three bars, each ~33 % capacity), charging indicators, and specifications such as sensitivity, frequency response, and transmission range. This manual is written in Chinese.
| Sensitivity | -55 dBV/Pa |
|---|---|
| Frequency Response | 60 Hz‑15 kHz |
| Battery Life | 15 h |
| Transmission Distance | >30 m |
| Frequency Range (A) | UHF 657.027 MHz‑659.027 MHz |
The microphone and receiver are pre‑paired at the factory; to re‑pair, turn on the receiver first and then the microphone.
Replace the battery with the same type; the battery indicator shows three bars, each representing about 33 % capacity.
The device is recommended for use in 0‑35 °C; performance may be limited when the temperature is below +5 °C.
