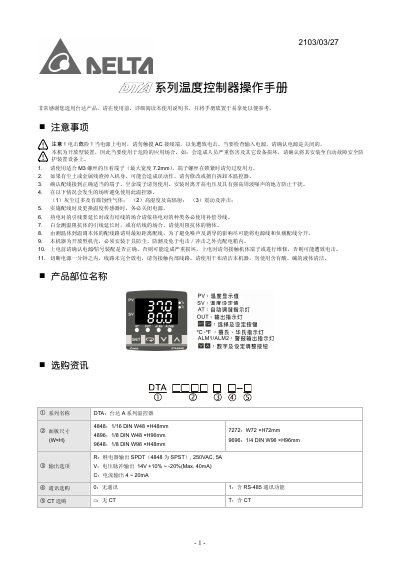

This manual provides operating instructions, installation guidelines, and technical specifications for the Delta DTA series temperature controller.
The Delta DTA Series is a programmable temperature controller designed for industrial applications. It features a 7-segment LED display showing current and set temperatures in red and green respectively. The device supports various control methods including PID, ON/OFF, and manual output adjustments to regulate heating or cooling processes. This manual is written in Chinese.
| Input Power | AC 100 ~ 240V, 50/60Hz |
|---|---|
| Operating Voltage Range | 85% ~ 110% of rated voltage |
| Power Consumption | 5VA Max. |
| Display Method | 7-segment LED display |
| Control Methods | PID or ON/OFF or Manual Output |
| Sampling Cycle | 0.5 seconds |
The controller supports thermocouples (K, J, T, E, N, R, S, B, U, L, Txk) and resistance sensors (Pt100, JPt100, Cu50).
The device operates within an ambient temperature range of 0°C to 50°C.
No, the device cannot operate in heating or cooling modes at the same time; only one function must be selected.
