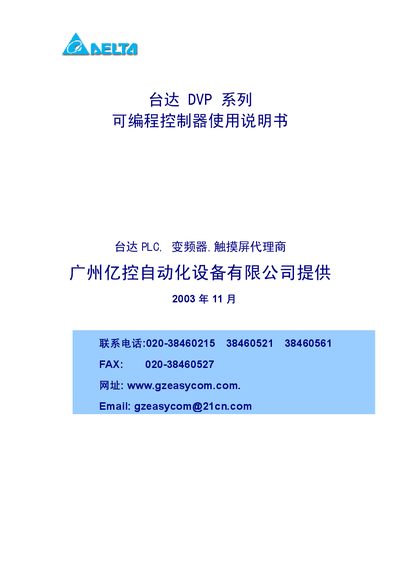

Delta DVP Series Programmable Logic Controller User Manual

About this manual

The Delta DVP Series Programmable Logic Controllers (PLC) are designed to meet various application requirements with host units ranging from 14 to 32 points and expansion units from 8 to 32 points. The series offers different models based on input/output points, power supply types, output modules, and analog/digital conversion capabilities.

The document provides detailed specifications for standard function hosts (MPU-00/01) and special function hosts (MPU-00), including digital I/O expansion units with relay or transistor outputs. It covers installation procedures such as DIN rail mounting, wiring terminals, and power supply connections, along with troubleshooting methods for abnormal phenomena. This manual is written in Chinese.

What's inside

• Product Introduction
• Model Specifications
• Functional Specifications
• Electrical Specifications
• Installation and Wiring
• Power Supply Connections
• Basic Sequential Instructions
• Application Commands

Frequently asked questions

What is the maximum input voltage range for AC power?

The unit accepts an AC input voltage ranging from 100VAC to 240VAC.

What is the maximum current rating for a single output point?

The maximum load current per output point is 2A.

How long can the PLC continue running during a power interruption?

The unit continues to operate if the power outage lasts within 10ms.
