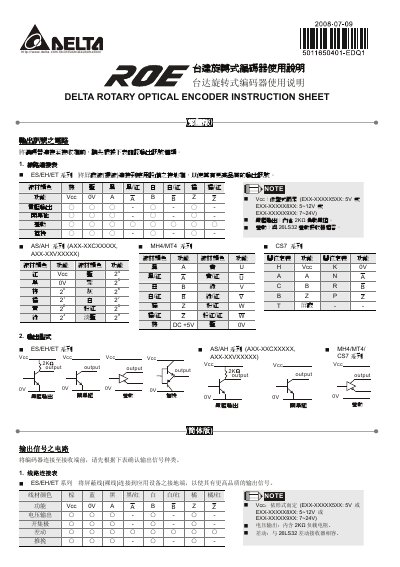

Delta Rotary Optical Encoder Instruction Sheet ES/EH/ET AS/AH MH4/MT4 CS7 Series

Instruction sheet for Delta rotary optical encoders covering series ES/EH/ET, AS/AH, MH4/MT4, and CS7 with wiring tables.

Brand: Delta电子工业
Document type: Product Leaflet
Language: Chinese
Pages: 2
File format: PDF
File size: 235 KB
Published: 04 February, 2012
Updated: 12 October, 2026
MD5 checksum: 9658E21D8E2C0636234F4C02C8F7E805
PDF: Delta Rotary Optical Encoder Instruction Sheet ES/EH/ET AS/AH MH4/MT4 CS7 Series PDF

About this manual

This document serves as an instruction sheet for Delta Rotary Optical Encoders. It provides essential information regarding the output signal circuits and wiring connections for various product series.

The guide details specific connection tables for different models including ES/EH/ET, AS/AH, MH4/MT4, and CS7 series. It specifies wire color codes corresponding to functions such as Vcc, 0V, A, B, Z, U, V, W, and shielding, along with supported output types like Voltage Output, Open Collector, Line Driver, and Push Pull. This manual is written in Chinese.

What's inside

Output Signal Circuit
Connection Table ES/EH/ET Series
Connection Table AS/AH Series
Connection Table MH4/MT4 Series
Connection Table CS7 Series
Output Types Supported
Wiring Color Codes
Differential Compatibility

Specifications

Supported Output Types	Voltage Output, Open Collector, Line Driver, Push Pull
Differential Compatibility	Compatible with 26LS32 differential line receiver
Voltage Output Load Resistor	Internal 2KΩ pull up resistor included

Frequently asked questions

How should the shield wire be connected for ES/EH/ET series?

Connect the shield wire (bare wire) with the grounding end of equipment.

What is the Vcc voltage range for EXX-XXXXX8XX models?

The Vcc voltage range is 5~12V.
