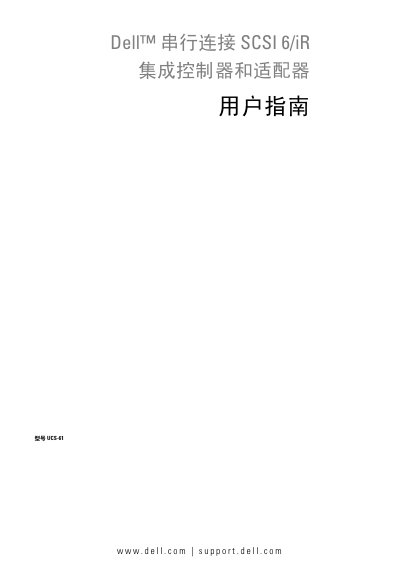

The Dell UCS-61 SAS 6/iR controller and adapter user guide provides installation, RAID configuration, driver setup, BIOS settings, and troubleshooting…
This guide covers the Dell UCS-61 SAS 6/iR Serial Attached SCSI controller and adapter, a PCI‑Express RAID solution for servers and workstations. It explains the hardware specifications, supported RAID levels, and the features of the integrated controller.
The manual includes sections on hardware installation, driver installation for Windows and Linux, BIOS configuration, RAID creation and management, firmware updates, and detailed troubleshooting procedures. Safety warnings, ESD precautions, and warranty information are also provided. This manual is written in Chinese.
| SAS Technology Support | Yes |
|---|---|
| PCI Express Interface | Supports x4, x8, x16 |
| Form Factor | Standard height, half‑length PCI adapter |
| Core Clock Rate | 255 MHz |
| Operating Voltage Requirements | +12 V, +3.3 V, +3.3 Vaux |
| Internal SAS Connectors | 2 × x4 connectors |
The controller supports RAID 0 and RAID 1.
It provides two internal x4 SAS connectors.
Drivers can be installed on Windows Server 2003, Windows XP, Windows Server 2008, and Windows Vista.
The SAS processor runs at 255 MHz.
