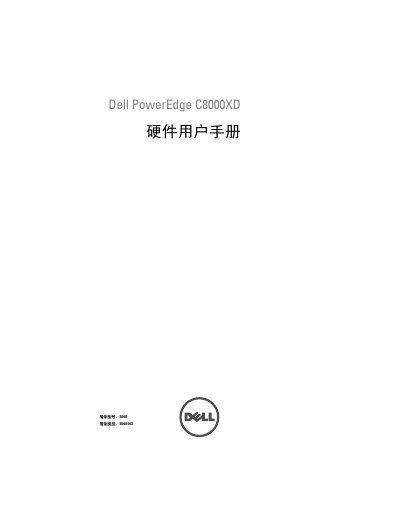

The Dell PowerEdge C8000XD hardware user manual covers system overview, installation, troubleshooting, firmware updates and support information.
This manual provides a detailed description of the PowerEdge C8000XD system, including front‑panel components, drive‑tray types, indicator lights and connector layouts. It explains the different drive‑tray configurations—standard 3.5‑inch, flexible 2.5‑inch and expansion trays for additional SSDs—and how the storage base can be configured for 12 or 24 drives.
Installation procedures, safety guidelines, jumper and connector information, and steps for using the Expander Flash Utility to update firmware are included. The document also offers troubleshooting tips for power, drive, and SAS issues, and lists contact details for Dell technical support. This manual is written in Chinese.
| Standard drive tray support | 3.5‑inch SAS/SATA/SSD drives |
|---|---|
| Flexible drive tray support | 2.5‑inch SAS/SATA/SSD drives |
| Expansion drive tray support | Two 2.5‑inch SSD drives |
| Maximum drive capacity | 12 or 24 drives |
| Power/status indicator | Green when on, green/amber flashing on fault |
The storage base can be configured for either 12 or 24 drives.
The standard drive tray supports 3.5‑inch SAS, SATA or SSD drives.
Use the Expander Flash Utility as described in the manual to update the firmware.
Contact Dell US support at 800‑999‑3355 or visit support.dell.com.
