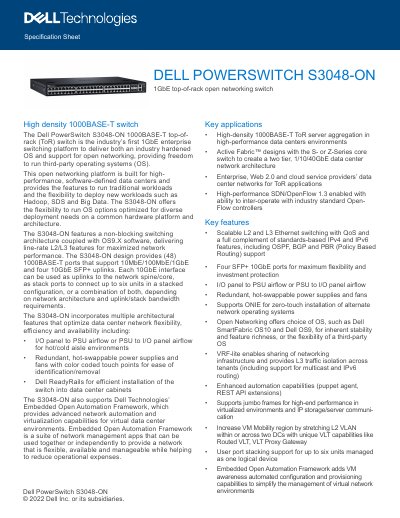

The Dell PowerSwitch S3048-ON specification sheet details a 48‑port 1GbE top‑of‑rack switch with four 10GbE uplinks, redundant power, and extensive L2/L3…
The Dell PowerSwitch S3048-ON is a high‑density 1GbE top‑of‑rack switch designed for enterprise data‑center environments. It offers 48 line‑rate 1000BASE‑T ports and four line‑rate 10GbE SFP+ uplinks, with options for stacking up to six units and redundant, hot‑swappable power supplies.
Key features include a non‑blocking switching architecture, support for open networking (ONIE), VRF‑lite, extensive L2/L3 routing protocols, and a rich set of management interfaces. The device complies with multiple safety and EMC standards and provides a 260 Gbps full‑duplex fabric capacity with 131 Mpps forwarding performance.
| 1GbE ports | 48 |
|---|---|
| 10GbE SFP+ ports | 4 |
| Power supply input | 90–264 VAC 50/60 Hz |
| Switch fabric capacity | 260 Gbps (full‑duplex) |
| Forwarding capacity | 131 Mpps |
| Operating temperature | 32° to 113°F |
| Weight (1 PSU) | 12.8 lbs (5.84 kg) |
| Max power consumption | 87 W |
The S3048-ON provides 48 line‑rate 1000BASE‑T ports.
Yes, it includes hot‑swappable redundant power supplies.
User port stacking is supported for up to six units, allowing them to be managed as a single logical device.
