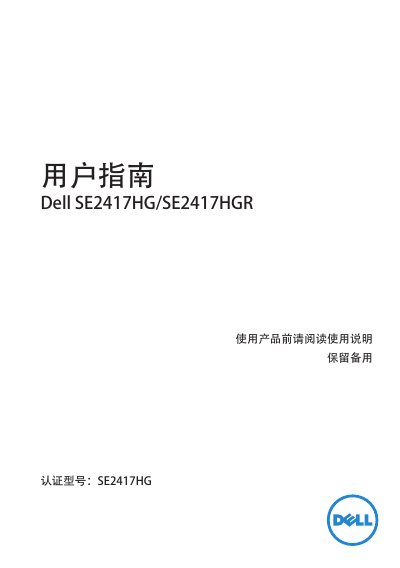

The Dell SE2417HG/SE2417HGR monitor user guide provides setup, operation, maintenance, and troubleshooting instructions.
This guide covers everything you need to know about the Dell SE2417HG/SE2417HGR flat‑panel monitor, including unpacking, installation, cable management, and how to use the front‑panel controls and OSD menu. It also explains the monitor’s plug‑and‑play capabilities, safety information, and regulatory compliance.
Technical specifications such as screen size, resolution, panel type, brightness, contrast, response time, and power consumption are listed, along with detailed pin‑out diagrams for the VGA and HDMI connectors. The manual finishes with troubleshooting steps, self‑test procedures, and contact information for Dell support. This manual is written in Chinese.
| Screen size | 23.6 inches (59.9 cm) |
|---|---|
| Resolution | 1920 × 1080 @ 60 Hz |
| Panel type | TN |
| Brightness | 300 cd/m² (typical) |
| Contrast ratio | 1000:1 (typical) |
| Dynamic contrast ratio | 8,000,000:1 |
| Response time | 2 ms (G‑to‑G) |
| Typical power consumption | 17 W |
