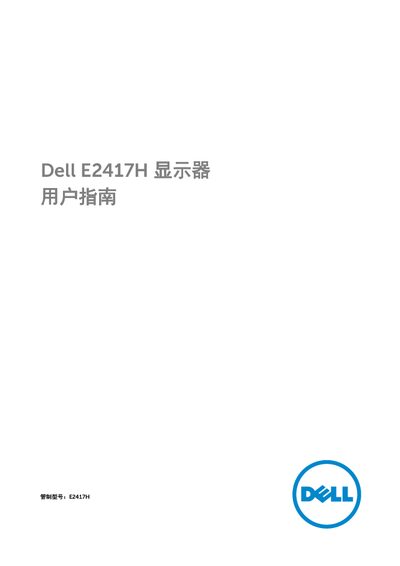

The Dell E2417H Monitor User Guide provides setup instructions, feature overview, specifications, and troubleshooting tips.
This guide covers the Dell E2417H 23.8‑inch LCD monitor, describing its active‑matrix TFT panel, LED backlight, and VESA‑compatible design. It explains how to unpack, install the stand or wall‑mount, connect video cables, and configure the on‑screen display (OSD) settings.
Additional sections detail the monitor’s technical specifications, power‑saving features, built‑in diagnostic tools, and a comprehensive troubleshooting chapter that helps resolve common issues such as no video signal, image distortion, or color problems. This manual is written in Chinese.
| Resolution | 1920 x 1080 |
|---|---|
| Aspect ratio | 16:9 |
| Brightness | 250 cd/m² (typical) |
| Contrast ratio | 1000:1 (typical) |
| Response time | 8 ms (gray‑to‑gray) |
| Power consumption (off/sleep) | ≤0.50 W |
| Input connectors | 1 × DisplayPort 1.2, 1 × VGA |
| Weight (including stand and cables) | 4.23 kg |
Keep the screen clean, disconnect the video cable, then press and hold button 1 for about 5 seconds to start the self‑test; follow the on‑screen prompts to check each color.
Verify that the video and power cables are securely connected, confirm the outlet is working, press the power button fully, and select the correct input source from the OSD menu.
