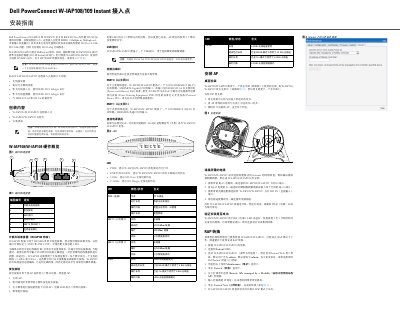

Installation guide for Dell PowerConnect W‑IAP108 and W‑IAP109 Instant access points, covering hardware overview, wiring, LED indicators and RAP conversion.
The guide provides a step‑by‑step installation process for the Dell PowerConnect W‑IAP108 and W‑IAP109 Instant access points. It includes hardware descriptions, antenna connections, reset procedures, power options, and LED status indicators.
Additional sections cover desktop mounting, cable connections, verification of successful startup, and instructions for converting the device to Remote AP (RAP) mode. Electrical specifications, compliance information, and safety warnings are also included. This manual is written in Chinese.
| Ethernet ports | 1 × 10/100/1000Base‑T auto‑sensing RJ‑45, 1 × 10/100Base‑T auto‑sensing RJ‑45 |
|---|---|
| PoE support | IEEE 802.3af and 802.3at (56 V DC, 350 mA) |
| Power input | 12 VDC external adapter; also supports PoE |
| Maximum power consumption | 12.5 W (no USB), 15 W (with USB) |
| Dimensions | 160 mm × 160 mm × 41 mm |
| Operating temperature | 0 °C to +40 °C |
| Storage temperature | -40 °C to +70 °C |
Power off the AP, press and hold the reset button with a pin, power it on while holding the button, release after the power LED flashes, and wait for the LED to flash again indicating reset completion.
PWR shows power status, ENET0/ENET1 indicate Ethernet link speed, 2.4 GHz and 5 GHz LEDs show wireless radio status, and the 56 Hz LED shows the 802.11a/b/g/n radio status.
