The Bosch refrigerator user manual provides safety warnings, installation steps, operation instructions, and maintenance guidance.

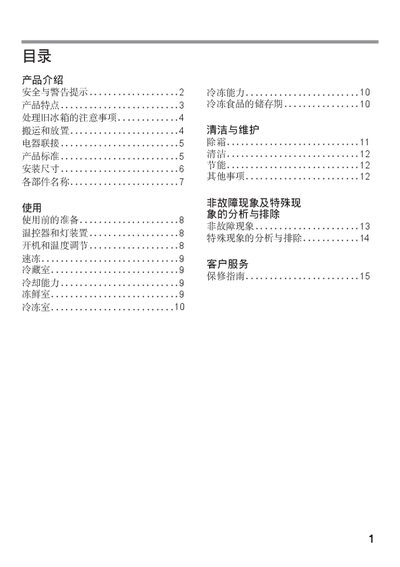

This manual covers all essential information for safely installing and using the Bosch household refrigerator‑freezer. It includes product introduction, safety and warning notices, handling and placement guidelines, electrical connection requirements, and detailed descriptions of each compartment and feature.
Operating instructions explain how to power on the unit, adjust the thermostat, use the fast‑freeze function, and maintain the appliance through cleaning, defrosting, and energy‑saving tips. The document also provides troubleshooting advice, warranty details, and customer service contacts. This manual is written in Chinese.
| Rated voltage | 220 V AC |
|---|---|
| Rated frequency | 50 Hz |
| Allowed voltage range | 187 V ~ 242 V |
| Minimum socket current rating | 10 A or higher |
| Refrigerant | R600a |
| Automatic winter switch | Present |
| Cooling capacity test standard | IEC 62552 |
Leave at least 10 cm of clearance on the sides and back, 30 cm above, keep the ventilation grille unobstructed, and adjust the front feet screws so the unit stands level and stable.
Turn the fast‑freeze switch to the “I” (on) position; it can be used for up to 24 hours, then switch it back to “O” (off) to avoid excess power consumption.
The unit uses the environmentally friendly R600a refrigerant.
Rotate the thermostat knob from 0 (off) to 5 (maximum cooling). Normal operation is 1–3, while fast‑freeze uses positions 4–5.
