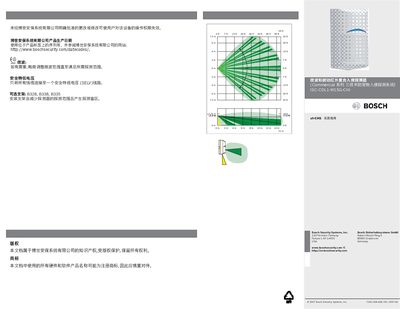

This Bosch installation guide provides step‑by‑step instructions, wiring diagrams, and technical specifications for the ISC‑CDL1‑W15G‑CHI microwave and…
The guide details the installation process for the ISC‑CDL1‑W15G‑CHI detector, including optional mounting brackets (B328, B338, B335), horizontal calibration, and cable protection sleeve options. It explains how to open the enclosure, remove the terminal strip, and connect the detector to a SELV power line.
Technical specifications are listed, covering power supply requirements, maximum current, alarm relay ratings, cable size, operating temperature range, and humidity limits. The document also includes DIP‑switch settings and instructions for adjusting the microwave detection range to achieve the desired coverage. This manual is written in Chinese.
| Operating Voltage | 9 to 15 VDC |
|---|---|
| Maximum Current | <35 mA |
| Alarm Relay / Anti‑tamper Rating | <100 mA, 25 V, 2.5 W |
| Cable Size | Ø 1.29 mm to 0.40 mm (16 AWG to 26 AWG) |
| Operating Temperature | -30 °C to +55 °C |
| Relative Humidity | up to 95 % non‑condensing |
The detector should be installed at a distance between 2.3 m and 2.75 m from the protected area.
If needed, slightly adjust the microwave range until the required detection area is covered.
Optional brackets B328, B338, and B335 can be used, though they may reduce detection range and create blind spots.
The detector operates on a low‑voltage SELV supply of 9 to 15 VDC.
