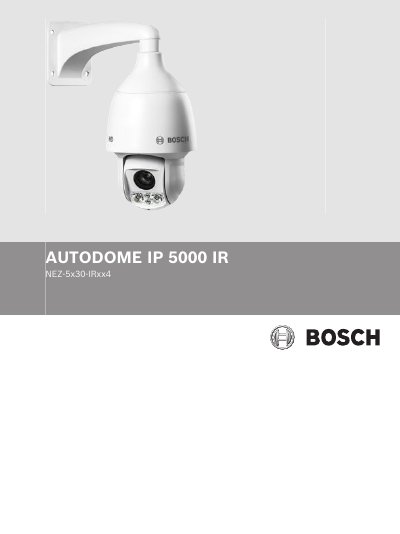

Installation guide with safety instructions, mounting steps, wiring options and maintenance for the Bosch AUTODOME IP 5000 IR security camera.
This manual provides all safety information required for installing the AUTODOME IP 5000 IR camera, including required compliance with ANSI/NFPA 70, Canadian electrical codes and local regulations. It also details handling precautions, required protective equipment and the legal notices that apply to the product.
The guide walks the installer through unpacking, checking the parts list, mounting the camera on walls, ceilings or pipe brackets, connecting power (24 VAC or PoE+), optional micro‑SD card installation, and routine maintenance such as cleaning the dome cover. Troubleshooting tips and end‑of‑life disposal instructions are also included. This manual is written in Chinese.
| Image resolution | 720p25/30 or 1080p25/30 |
|---|---|
| Power options | 24 VAC or PoE+ |
| PoE+ requirement | Qualified PoE+ device only |
| Maximum fuse rating | 16 A |
Installation must be performed by qualified personnel in accordance with ANSI/NFPA 70, the Canadian Electrical Code (CSA C22.1) and all applicable local regulations.
The camera can be powered from a 24 VAC source or from PoE+; when PoE+ is unavailable, 24 VAC must be used.
Do not use alcohol‑based solvents; clean the interior with compressed air and the exterior with a non‑abrasive cloth and suitable glass cleaner, then dry with a lint‑free cloth.
A fuse with a maximum rating of 16 A must be installed on the branch circuit.
