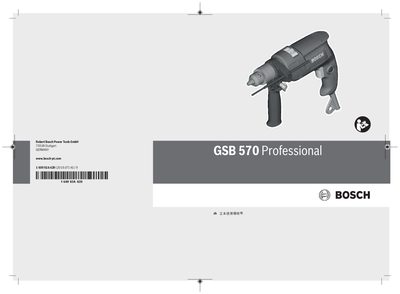

Chinese user manual for the Bosch GSB 570 hammer drill covering safety, operation, technical data and maintenance.
The manual provides comprehensive safety instructions, proper handling guidelines, and required protective equipment for the Bosch GSB 570 hammer drill. It explains how to prepare the work area, avoid hazardous environments, and use auxiliary handles and ear protection.
Detailed sections describe the tool’s technical specifications, installation steps, operation modes, drill‑bit changes, depth‑setting, and maintenance procedures. Contact information for Bosch service and spare‑part ordering is also included. This manual is written in Chinese.
| Rated input power | 570 W |
|---|---|
| Maximum input power | 270 W |
| No‑load speed | 0–2800 rpm |
| Impact frequency | 0–44800 impacts/min |
| Rated torque | 1.5 Nm |
| Spindle diameter | 43 mm |
| Maximum drilling diameter (brick, concrete, stone) | 13 mm |
| Maximum drilling diameter (wood) | 25 mm |
| Weight | 1.8 kg |
| Protection class | II |
| Rated voltage | 230 V |
Adjust the depth‑setting lever, insert the depth stop into the auxiliary handle, and set the distance between the drill tip and the stop to the desired depth.
