The Bosch UPH series high‑speed positioning system delivers up to 100°/s pan, 40°/s tilt, IP66 protection and flexible camera options.

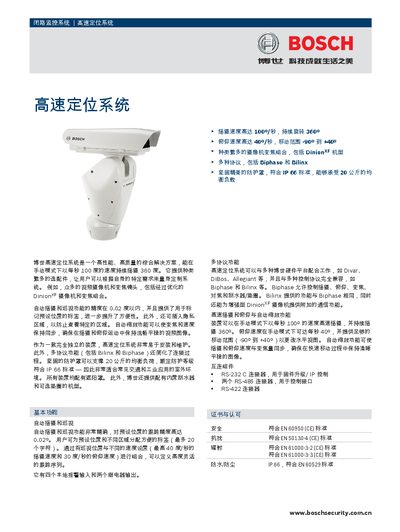

The Bosch UPH series is a high‑performance positioning solution for outdoor surveillance, offering precise automatic pan‑tilt‑zoom functions with a positioning accuracy of 0.02°. It supports multiple camera and zoom lens combinations, privacy masking, and dual protocol control (Biphase and Bilinx).\n\nThe system includes a robust IP66‑rated enclosure capable of supporting a 20 kg load, operates from 24 V or 230 V AC, and provides extensive I/O options, preset position storage, and configurable RS‑232/RS‑485/RS‑422 interfaces. Detailed technical specifications, installation options, and ordering information are provided for various UPH models. This manual is written in Chinese.
| Maximum pan speed | 100°/s |
|---|---|
| Maximum tilt speed | 40°/s |
| IP protection rating | IP66 |
| Input voltage | 24/230 VAC, 50/60 Hz |
| Weight | ≈14 kg |
| Operating temperature range | -20 °C to +50 °C |
| Preset position accuracy | 0.02° |
| Maximum load capacity | 20 kg |
The system can pan at up to 100 degrees per second.
It is rated IP66, suitable for outdoor use.
Up to 250 preset positions can be stored, with a maximum of 99 set via the keyboard.
The device accepts 24 V AC or 230 V AC at 50/60 Hz.
