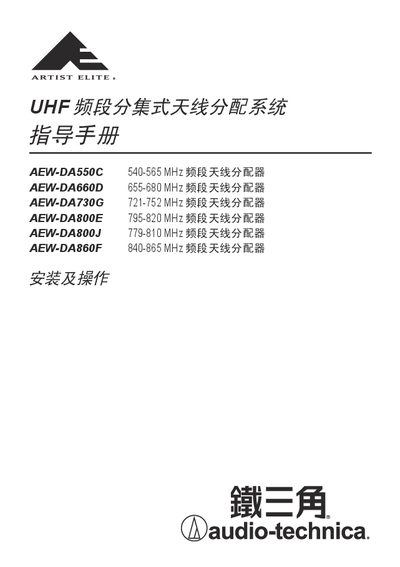

This manual provides installation and operation instructions for Audio-Technica UHF diversity antenna distribution systems, covering multiple frequency…
This guide covers the installation and operation of Audio-Technica UHF diversity antenna distribution systems, specifically models AEW-DA550C, AEW-DA660D, AEW-DA730G, AEW-DA800E, AEW-DA800J, and AEW-DA860F. These units are designed to distribute signals from a pair of antennas to multiple channels in a wireless reception system, supporting four receiver connections per unit. This manual is written in Chinese.
| Frequency Range (AEW-DA550C) | 540 ~ 565 MHz |
|---|---|
| Frequency Range (AEW-DA660D) | 655 ~ 680 MHz |
| Frequency Range (AEW-DA730G) | 721 ~ 752 MHz |
| Frequency Range (AEW-DA800E) | 795 ~ 820 MHz |
| Frequency Range (AEW-DA800J) | 779 ~ 810 MHz |
| Frequency Range (AEW-DA860F) | 840 ~ 865 MHz |
| Gain | 0 dB, ±3 dB typical |
| Input Impedance | 50 Ohms typical |
| Output Impedance | 50 Ohms typical |
| Power Supply | AC 100-240V, 50/60 Hz |
| Dimensions | 480.0 mm (W) x 48.8 mm (H) x 280.0 mm (D) |
| Weight | 2.7 kg |
One unit in this series provides distribution connections for 4 receivers.
The maximum serial power connection is 500W; do not connect equipment higher than this.
All RF terminals are standard BNC interfaces.
