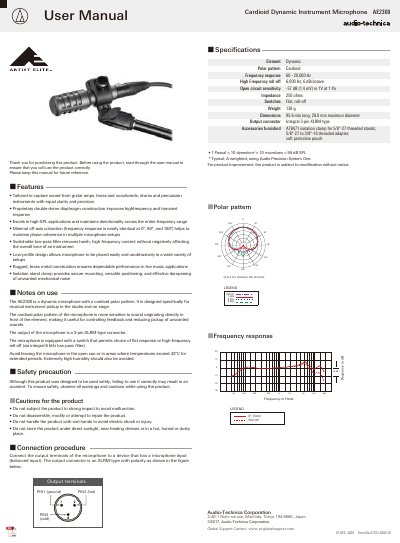

The AE2300 is a cardioid dynamic instrument microphone with a switchable 6 kHz low‑pass filter and XLRM output, intended for studio and stage use.
The AE2300 dynamic microphone features a cardioid polar pattern that captures sound primarily from the front, helping control feedback and reduce unwanted pickup. It includes a proprietary double‑dome diaphragm for improved high‑frequency response and a built‑in 6 kHz low‑pass filter selectable via a switch.
The microphone connects via a 3‑pin XLRM‑type connector and comes with an isolation stand clamp, a threaded adapter, and a protective pouch. For safe operation, avoid exposing the unit to direct sunlight, temperatures above 43 °C, or high humidity, and never handle it with wet hands. This manual is written in Chinese.
| Type | Dynamic Cardioid |
|---|---|
| Frequency response | 20 Hz – 20 kHz |
| High‑frequency roll‑off | 6 kHz, 6 dB/octave |
| Sensitivity | -57 dB (1.4 mV) re 1 V at 1 Pa |
| Impedance | 250 Ω |
| Length | 95.6 mm |
| Maximum diameter | 28.0 mm |
| Output connector | 3‑pin XLRM‑type |
It uses a cardioid polar pattern, which is most sensitive to sound coming from directly in front of the microphone.
Do not store the microphone in direct sunlight, near heating devices, or in hot, humid, or dusty environments; temperatures above 43 °C should be avoided.
