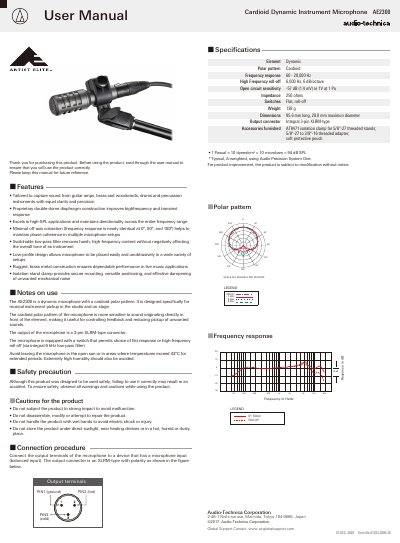

The AE2300 user manual explains features, connection, specifications, safety precautions and usage tips for the cardioid dynamic instrument microphone.
This manual provides an overview of the Audio‑Technica AE2300 cardioid dynamic instrument microphone, highlighting its rugged brass construction, switchable flat or high‑frequency roll‑off response, and suitability for studio and stage instrument pickup. It includes feature lists, polar‑pattern diagrams, and detailed frequency‑response charts.
The guide describes the 3‑pin XLRM‑type output connection, wiring polarity, and step‑by‑step connection procedure, as well as safety and handling precautions such as avoiding direct sunlight, temperatures above 43 °C, and high humidity. It also lists the supplied accessories and the recommended mounting clamp.
| Polar pattern | Cardioid |
|---|---|
| Frequency response | 20 – 20 000 Hz |
| High‑frequency roll‑off | 6 kHz, 6 dB/octave |
| Sensitivity | -57 dB (1.4 mV) re 1 V at 1 Pa |
| Impedance | 250 Ω |
| Dimensions | 95.6 mm long, 28.0 mm max diameter |
| Output connector | 3‑pin XLRM‑type |
The microphone uses a 3‑pin XLRM‑type connector for balanced output.
The sensitivity is –57 dB (1.4 mV) re 1 V at 1 Pa.
