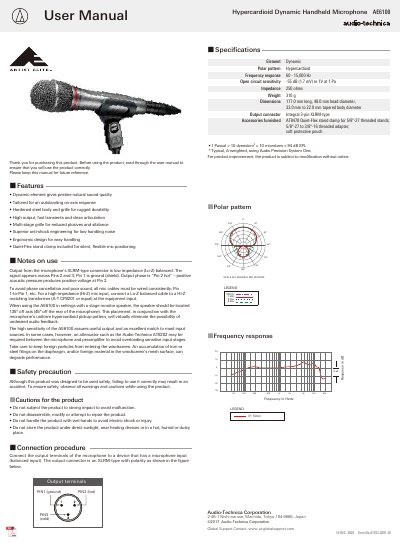

The Audio‑Technica AE6100 user manual provides features, connection instructions, specifications, and safety guidelines for the hypercardioid dynamic…
This manual describes the AE6100 hypercardioid dynamic handheld microphone, covering its key features, recommended handling, and connection methods. It includes wiring details for the 3‑pin XLRM connector, recommended stand placement, and optional attenuator usage.
Safety precautions, specifications such as sensitivity, impedance, frequency response, and included accessories are listed, helping users set up and maintain the microphone safely and effectively.
| Sensitivity | -55 dB (1.7 mV) re 1 V at 1 Pa |
|---|---|
| Impedance | 250 Ω |
| Length | 177.0 mm |
| Head diameter | 48.0 mm |
| Body diameter (tapered) | 33.0 mm to 22.0 mm |
| Frequency response | 60 Hz – 15 kHz |
| Polar pattern | Hypercardioid |
| Output connector | 3‑pin XLRM‑type |
| Included accessories | Quiet‑Flex stand clamp, 5/8"‑27 to 3/8"‑16 adapter, protective pouch |
Pin 1 is ground (shield), Pin 2 is hot (positive acoustic pressure), and Pin 3 is cold (negative).
A Quiet‑Flex stand clamp compatible with 5/8"‑27 threaded stands is supplied.
