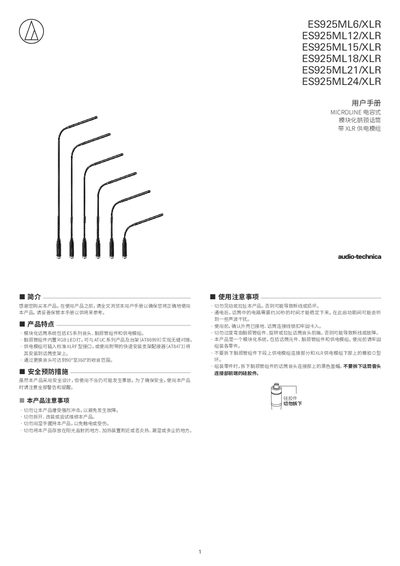

User manual for the Audio-Technica ES925ML series modular condenser microphones with XLR power module, covering assembly, LED indicators, and specifications.
This manual covers the Audio-Technica ES925ML series of modular condenser microphones, which consist of interchangeable capsule heads, gooseneck assemblies, and XLR power modules. The system allows for a wide pickup pattern range from 90° to 360° by swapping the capsule head. The gooseneck assembly features an RGB LED light that can interface with ATUC series products and the AT8699R stand. This manual is written in Chinese.
| Frequency Response | 30 - 20,000Hz |
|---|---|
| Open Circuit Sensitivity | -35dB (17.7mV) |
| Impedance | 130 ohms |
| Maximum Input SPL | 137dB SPL |
| Dynamic Range | 114dB |
| Signal-to-Noise Ratio | 71dB |
| Phantom Power | DC 11 - 52V |
The circuit requires approximately 30 seconds to stabilize after power is applied.
Changing the capsule head allows for a pickup range of 90° to 360°.
The RGB LED light can interface with ATUC series products and the AT8699R stand.
