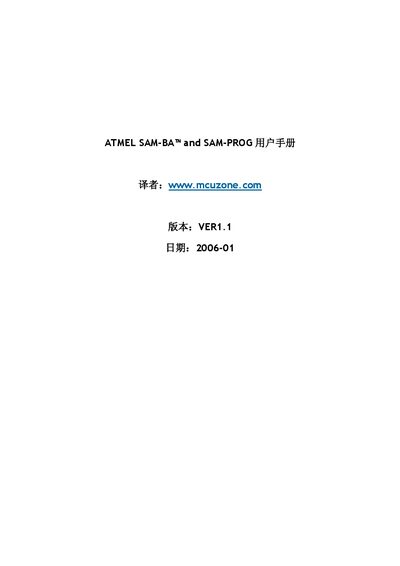

Atmel SAM-BA and SAM-PROG User Manual

This document introduces the application methods of SAM-BA™ and SAM-PROG tools, including downloading, burning, reading, erasing, etc.

Brand: Atmel
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 15
File format: PDF
File size: 439 KB
Published: 16 January, 2012
Updated: 30 September, 2023
MD5 checksum: C9E9BB0917920DE69E0D75B3C9F898BB
PDF: Atmel SAM-BA and SAM-PROG User Manual PDF

About this manual

The SAM-BA and SAM-PROG tools provide ISP programming via RS232 or USB and run on Windows 2000 and Windows XP. The manual describes the boot process, required pin settings, and the system recovery procedure for AT91SAM7 devices.

Installation steps for the SAM-BA software, driver setup, and usage of the console are covered, along with supported microcontroller models and version notes. This manual is written in Chinese.

What's inside

Introduction
Features
Supported Devices
Installation Guide
System Recovery Procedure
USB Driver Installation
Using SAM-BA Console
Appendix

Specifications

USB clock frequency	48 MHz
Supported interfaces	RS232, USB
Operating systems	Windows 2000, Windows XP

Frequently asked questions

What interfaces can be used for ISP programming with SAM-BA?

SAM-BA supports ISP programming via RS232 or USB interfaces.

How do I enter SAM-BA boot mode on the target board?

Set the TST, PA0, PA1, and PA2 pins as indicated in the pin‑configuration table before powering the board.

What operating systems are required for the SAM-BA GUI?

The SAM-BA GUI runs on Windows 2000 and Windows XP.
