AT90CAN32/64/128 series is a high-performance, low-power AVR® 8-bit microcontroller from ST Microelectronics, with 32 general purpose working registers, 32K/64K/128K bytes of in-system reprogrammable flash, and 1K/2K/4K bytes of EEPROM.
The AT90CAN32/64/128 family are low‑power 8‑bit AVR microcontrollers with an integrated CAN 2.0A/B controller, up to 16 MHz operation and a rich set of peripherals including multiple timers, UARTs, SPI, JTAG, and an 8‑channel 10‑bit ADC. They offer flash memory sizes of 32 KB, 64 KB or 128 KB, EEPROM from 1 KB to 4 KB and SRAM up to 4 KB, plus 53 programmable I/O lines.

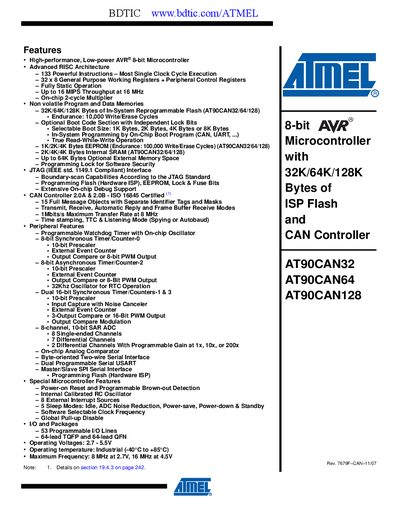

The datasheet provides a complete block diagram, pin‑out for TQFP and QFN packages, detailed descriptions of each I/O port, and extensive electrical characteristics such as operating voltage (2.7‑5.5 V), temperature range (‑40 °C to +85 °C), and maximum CAN bus speed of 1 Mbit/s. It also covers boot‑loader support, programming methods (ISP, parallel, JTAG) and power‑saving modes.
| Operating voltage | 2.7 V – 5.5 V |
|---|---|
| Operating temperature | -40 °C to +85 °C (Industrial) |
| Maximum CPU frequency | 8 MHz at 2.7 V, 16 MHz at 4.5 V |
| Flash memory | 32 KB / 64 KB / 128 KB |
| EEPROM | 1 KB / 2 KB / 4 KB |
| SRAM | 2 KB / 4 KB / 4 KB |
| Programmable I/O lines | 53 |
| CAN controller | ISO 16845 Certified 2.0A & 2.0B |
| Maximum CAN bus speed | 1 Mbit/s at 8 MHz |
| ADC | 8‑channel, 10‑bit SAR ADC |
The device operates from 2.7 V to 5.5 V.
The AT90CAN64 version includes 64 KB of In‑System Reprogrammable Flash.
The CAN controller can transfer up to 1 Mbit/s at an 8 MHz clock.
The microcontroller provides 53 programmable I/O lines.
