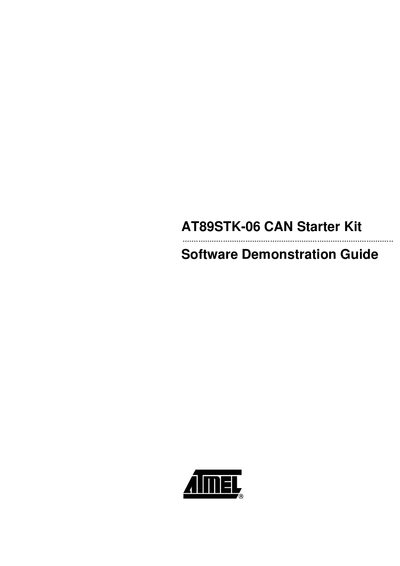

Guide for setting up and running the AT89STK-06 CAN Starter Kit demo programs using FLIP and required hardware.
The document introduces the AT89STK-06 CAN Starter Kit, the FLIP In‑System Programming tool, and the demonstration programs (CAN Generator, CAN Monitor, UART and CAN bootloaders, ADC demo). It explains the hardware and software requirements and provides step‑by‑step instructions for each demonstration.
It details the connections, FLIP configuration, loading of HEX files, and how to verify successful programming. The guide also covers CAN node configuration and ADC demonstration usage, concluding with a summary of successful runs.
| Supported Operating Systems | Windows 98, ME, XP, NT, 2000, Linux |
|---|---|
| Power Supply Voltage | 9 V DC |
| Required Serial Cable | RS‑232 DB9 Male/Female |
| Required CAN Dongle | IXXAT, PCAN, CANCARDX, CANPARI, or RMCANVIEW |
The FLIP In‑System Programmer is required; it runs on Windows 98, ME, XP, NT, 2000 and also has a Linux version.
Connect the AT89STK-06 to the PC with the RS‑232 cable, press RESET (SW5) and ISP (SW4) together, then use FLIP to load the UART bootloader HEX file and start the application.
