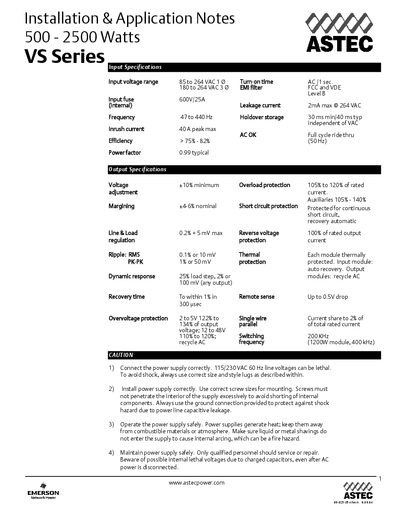

Installation guide and specifications for Astec VS Series power supplies, covering output specs, wiring, mechanical dimensions, and safety guidelines.
This document provides detailed specifications, installation notes, and application information for the Astec VS Series power supplies. It includes output power ranges, input voltage limits, efficiency data, and safety precautions required for proper installation and operation.
The guide also contains mechanical drawings, connector pin‑out tables, module option codes, and parallel configuration rules, along with technical support contacts and compliance information for UL, IEC, EN, VDE, and CSA standards.
| Output Power | 500 – 2500 W |
|---|---|
| Efficiency | >75% – 82% (50 Hz) |
| Frequency | 47 – 440 Hz |
| Maximum Ambient Temperature | 50 °C |
Connect the supply correctly, use proper size and style lugs, secure the ground connection, keep the unit away from combustible materials, and have qualified personnel perform service or repair.
Efficiency is greater than 75 % and can reach up to 82 % at 50 Hz.
5‑inch 2‑slot units up to 1500 W, 8‑inch 4‑slot units up to 2000 W, and 11‑inch 6‑slot units up to 2500 W are offered.
