The document provides information about the dimensions and installation requirements of Astec's LPX 110-C product, including the material of the cover and screw specifications.

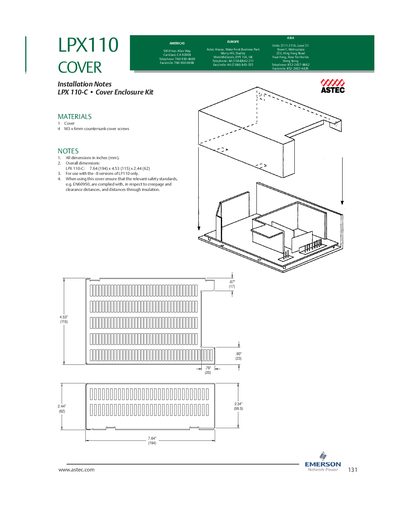

This document provides installation notes for the ASTEC LPX110-C Cover Enclosure Kit. It lists the required hardware, dimensions, and safety requirements that must be observed when fitting the cover.
The kit includes one cover and four M3 × 6 mm countersunk screws. Overall dimensions of the cover are 7.64 in × 4.53 in × 2.44 in (194 mm × 115 mm × 62 mm). The cover is intended for use with the –B versions of the LPX110 only, and must comply with safety standards such as EN60950 regarding creepage and clearance distances.
| Overall length | 7.64 in (194 mm) |
|---|---|
| Overall width | 4.53 in (115 mm) |
| Overall height | 2.44 in (62 mm) |
| Cover screws | 4 × M3 × 6 mm countersunk screws |
The cover measures 7.64 in × 4.53 in × 2.44 in (194 mm × 115 mm × 62 mm).
Four M3 × 6 mm countersunk cover screws are required.
The cover is for use with the –B versions of the LP110 only.
Installation must comply with safety standard EN60950.
