The LPS110 series is a 110W power adapter from ASTEC brand. It supports 85-264 VAC 120-300 VDC input voltage range and has features such as high efficiency, built-in EMI filter, low output ripple, adjustable output, power failure, overvoltage protection, and overload protection.
The ASTEC LPS110 Series power supply provides up to 110 W output with high efficiency and built‑in EMI filtering. It supports a universal input range of 85‑264 VAC or 120‑300 VDC and offers remote‑sense capability, overload and over‑voltage protection, and optional L‑bracket mounting.

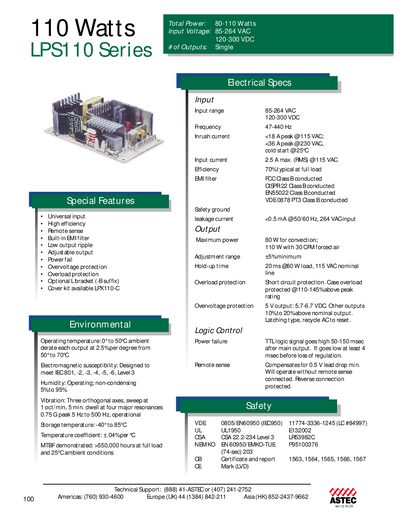

The document lists detailed electrical specifications, environmental ratings, connector options, and ordering information for the various output models (12 V, 15 V, 24 V, 48 V). Certifications include FCC Class B, VDE, UL, CSA and CE marks.
| Input voltage range | 85‑264 VAC / 120‑300 VDC |
|---|---|
| Maximum output power | 80 W (convection) / 110 W (forced air) |
| Efficiency at full load | 70 % typical |
| Hold‑up time | 20 ms @ 80 W load |
| Operating temperature range | 0 °C to 50 °C ambient |
The LPS110 Series accepts an input voltage of 85‑264 VAC or 120‑300 VDC.
Typical efficiency is about 70 % at full load.
Yes, remote sense is provided and compensates for up to 0.5 V lead drop.
