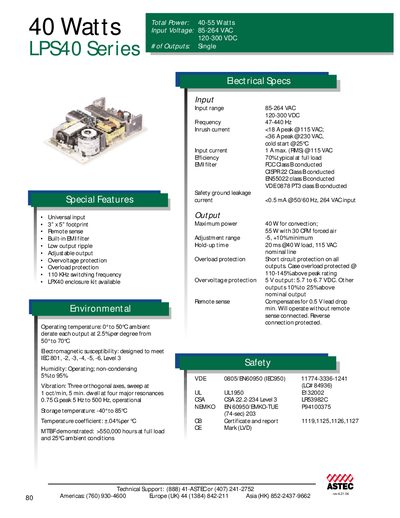

The LPS40 series is a 40 watts AC to DC power supply with a universal input range of 85-264 VAC and 120-300 VDC. It features a 3” x 5” footprint, remote sense, built-in EMI filter, low output ripple, adjustable output, overvoltage protection, overload protection, 110 KHz switching frequency, and an LPX40 enclosure kit available.
The LPS40 Series is a universal‑input power supply offering up to 55 W output with low ripple, adjustable voltage, and built‑in protections such as overload and over‑voltage. It supports remote sense, optional enclosure kits, and complies with multiple safety and EMC standards.
Key electrical data include an input range of 85‑264 VAC (120‑300 VDC), single output, efficiency around 70 % at full load, and an MTBF of over 550 000 hours. Environmental limits cover operating temperatures from 0 °C to 50 °C, storage from –40 °C to 85 °C, and humidity up to 95 % non‑condensing. Ordering information and connector pin‑assignments are also provided.
| Output Power | 40‑55 W |
|---|---|
| Input Voltage | 85‑264 VAC / 120‑300 VDC |
| Number of Outputs | Single |
| Efficiency | 70 % typical at full load |
| MTBF | >550,000 hours at full load, 25 °C |
| Operating Temperature | 0 °C to 50 °C ambient |
| Storage Temperature | -40 °C to 85 °C |
The LPS40 series accepts an input voltage of 85‑264 VAC or 120‑300 VDC.
It can deliver between 40 W and 55 W depending on cooling configuration.
Each unit provides a single output.
