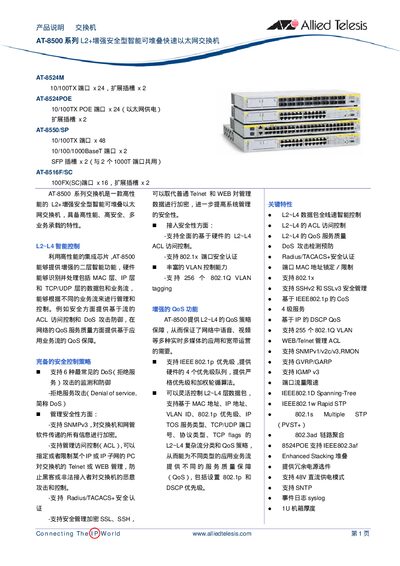

The Allied Telesis AT-8500 series L2+ switch manual provides specifications, security features, installation and configuration guidance.
The AT-8500 series L2+ switches are high‑performance, secure, stackable Ethernet switches with L2‑L4 intelligence. They offer enhanced security functions such as ACL, DoS protection, SNMPv3, SSL/SSH, 802.1x, and Radius/TACACS+.
The manual includes hardware specifications, physical dimensions, power requirements, VLAN and QoS capabilities, stacking options, and a list of accessories, helping users install, configure, and maintain the devices efficiently.
| RAM | 32 MB |
|---|---|
| Flash Memory | 4 MB |
| CPU | 200 MHz PowerPC |
| Maximum VLANs | 255 |
| MAC Address Table | 8 K entries |
| File System | 2 MB |
| Throughput (AT‑8524M) | 6.6 Mpps |
| Switching Capacity (AT‑8524M) | 8.8 Gbps |
| Dimensions (AT‑8524M) | 4.4 cm × 43.8 cm × 18.4 cm |
| Weight (AT‑8524M) | 3.3 kg |
| Power Consumption (AT‑8524M) | 80 W Max |
The series can handle up to 255 VLANs.
