The AT-CV1KSS 1000 Gigabit Media Converter Module extends the reach of 1000BASE-T networks and supports fiber and copper Gigabit SFP modules (only supports 1Gbps speed), MissingLinkTM and SmartMissingLinkTM, pass through IEEE802.1Q VLAN data packets, and can operate in managed or unmanaged mode. System and port LED indicators are suitable for all Converteon series chassis.
The AT‑CV1KSS is a gigabit Ethernet media converter that supports 1000Base‑T copper ports and a variety of SFP optical modules, including multimode and single‑mode options. It can be installed in any Converteon series chassis such as the AT‑CV1000, AT‑CV1203, or AT‑CV5001, offering flexible deployment in campus or data‑center networks.

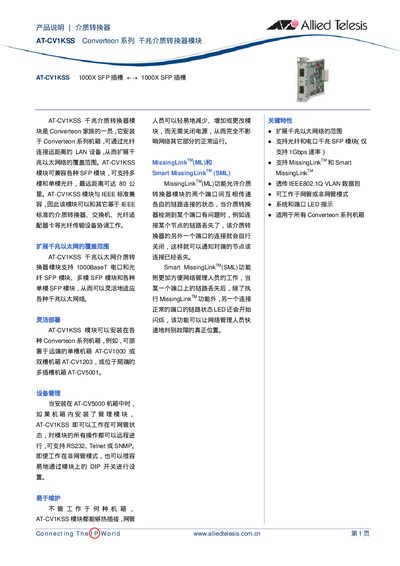

Management functions include remote configuration via RS‑232, Telnet, or SNMP, and advanced features like MissingLink and Smart MissingLink for automatic fault detection and fail‑over. The device also provides DIP switch settings for mode selection and LED indicators for link status. This manual is written in Chinese.
| Dimensions (W×D×H) | 2.2 cm × 7.3 cm × 13 cm |
|---|---|
| Weight | 0.27 kg |
| Power Consumption | 4.75 W |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -25 °C to 70 °C |
| Operating Humidity | 59 % to 95 % |
It can be managed remotely via RS‑232, Telnet, or SNMP.
Yes, it can be mounted in AT‑CV1000, AT‑CV1203, or AT‑CV5001 chassis.
