The AT-8000S series switches have a non-blocking switching structure and line-speed forwarding capability. In addition to fixed 10/100T ports, the built-in 10/100/1000BaseT ports can be directly connected to gigabit copper cables, and can also be connected to gigabit or hundred-megabit optical cables through shared SFP slots. At the same time, excellent stacking performance, rich QoS features, POE, multiple security features and convenient management are also available.
The AT-8000S series offers full‑line, non‑blocking switching with line‑rate forwarding, hardware stacking up to six units, and a 4 Gbps full‑duplex stacking bandwidth. It supports a rich set of QoS, PoE, security and management options, making it suitable for enterprise and carrier networks.

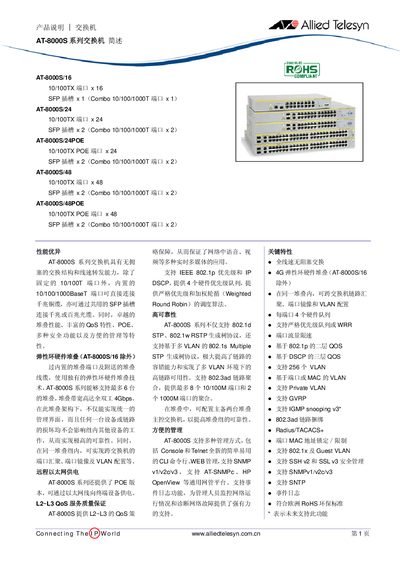

Key hardware specs include switch capacity from 5.2 Gbps to 17.6 Gbps, a 400 MHz CPU, 64 MB RAM, 16 MB flash, and up to 8 K MAC addresses. The series complies with RoHS and various safety and EMC certifications. This manual is written in Chinese.
| Switch Capacity | 5.2 Gbps – 17.6 Gbps |
|---|---|
| CPU | 400 MHz |
| RAM | 64 MBytes |
| Flash Memory | 16 MBytes |
| MAC Address Table | 8 K entries |
| Dimensions (W×D×H) | 330 × 230.5 × 43.2 mm (AT‑8000S/16) |
| Weight | 1.95 kg (AT‑8000S/16) |
| Power Input | 100‑240 V AC |
The hardware stacking bandwidth can reach full‑duplex 4 Gbps.
The AT‑8000S/48POE model has 48 PoE ports.
They support IEEE 802.1p priority, IP DSCP, four hardware queues, strict priority and weighted round‑robin scheduling.
