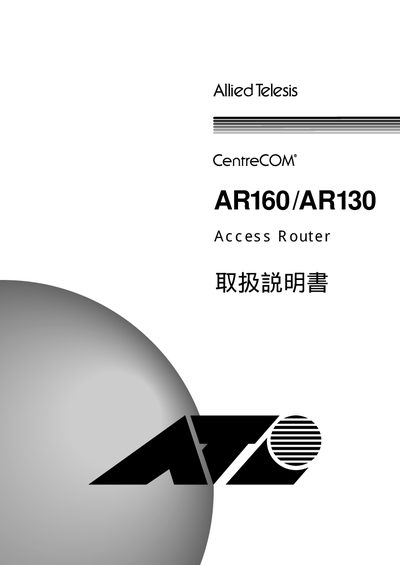

AR160/AR130 router user manual, introducing the features and usage precautions of the product, such as usage environment, installation, disassembly, connecting power supply, etc.
This manual begins with safety precautions, explaining proper power‑supply use, avoiding water, dust, and static electricity, and the importance of using the supplied AC100‑240 V power cable and a grounded three‑pin plug. It also lists suitable installation environments, such as avoiding direct sunlight, high temperatures, and excessive vibration.
The second part covers hardware details, including the built‑in HUB (4 Ethernet ports), DSU/5‑T ports, and analog ports, followed by configuration examples, command reference, key‑input notation, and how to obtain the latest firmware and documentation from the Allied Telesis website. This manual is written in Japanese.
| Operating Voltage | AC100‑240 V |
|---|---|
| Power Cable | Supplied 100 V AC cable only |
| Ports (AR160) | 4‑port Ethernet HUB, 2‑port DSU/5‑T, 2‑port analog |
| Ports (AR130) | 4‑port Ethernet HUB, 2‑port DSU/5‑T |
The router operates on AC100‑240 V; use the supplied power cable rated for 100 V AC.
No. Using any power adapter other than the supplied one may cause fire or electric shock.
The AR160 includes a 4‑port Ethernet HUB.
Visit the Allied Telesis website, click Support → Bridge/Router, select the product, and download the desired firmware version.
