The AT-MCF2x00 series of multi-channel modular manageable media converter stack modules is a high-performance, highly available, and high-channel-density media converter device. Designed for maximum reliability, fan, power supply and management modules all support hot-swapping. AT-MCF2000 has 2 media slots, AT-MCF2300 has 4 media slots. A scalable architecture that can be purchased on demand supports multi-chassis stacking, and a management module can manage the entire stack, or two management modules can be used to achieve redundant management. The device is ideal for mass deployment of optical fiber.
The AT-MCF2X00 series is a high‑performance, high‑availability, high‑density multi‑channel network switch family. It offers 10/100/1000T Ethernet ports, SFP ports, RS232, and supports management via Telnet, SNMP, and local console. The series can be stacked for up to 16 chassis, providing flexible scalability.

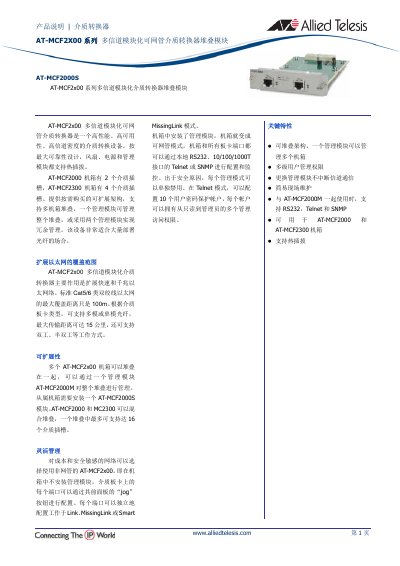

Technical specifications include operating temperature ranges, humidity limits, altitude tolerance, and various regulatory certifications. Different chassis (AT‑MCF2000, AT‑MCF2300) support 24 or 48 channels respectively, with optional fan and power accessories. The guide also lists contact information for Allied Telesis support centers worldwide. This manual is written in Chinese.
| Operating Temperature | 0°C – 40°C |
|---|---|
| Storage Temperature | -25°C – 70°C |
| Operating Relative Humidity | 5% – 95% |
| Storage Relative Humidity | 5% – 95% |
| Maximum Altitude | 4000 m |
| Fiber Optic Reach (single‑mode) | up to 15 km |
Yes, the switches support Telnet as well as SNMP for remote management.
The switches can reach up to 15 km on single‑mode fiber and up to 2 km on multimode fiber.
Up to 16 chassis can be stacked, allowing a single management module to control multiple units.
