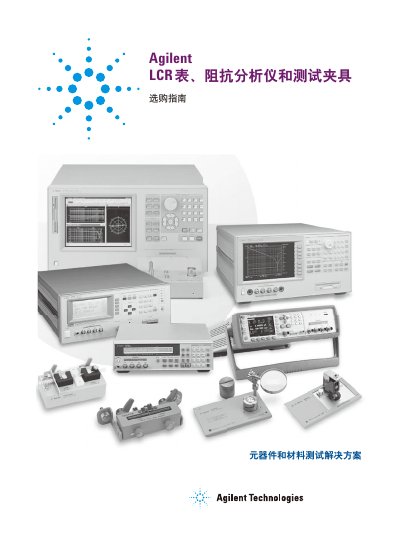

A selection guide that compares Agilent LCR meters, impedance analyzers and test fixtures to help choose the right solution.
This guide introduces Agilent's range of LCR meters, impedance analyzers and associated test fixtures. It explains the measurement technologies (automatic balance bridge, I‑V, RF‑I‑V, network analysis) and highlights the frequency ranges, accuracy and special features of each product family.
Detailed tables list the specifications of individual models, available accessories and test fixtures, and provide guidance on matching instruments to specific applications such as component, material and semiconductor testing. This manual is written in Chinese.
| LCR meter frequency range | 20 Hz – 3 GHz |
|---|---|
| LCR meter basic accuracy | 0.1 % |
| Impedance analyzer frequency range (4294A) | 40 Hz – 110 MHz |
| Maximum DC bias for test fixture 16034E | ±40 V |
The E4980A provides a basic accuracy of 0.05 %.
