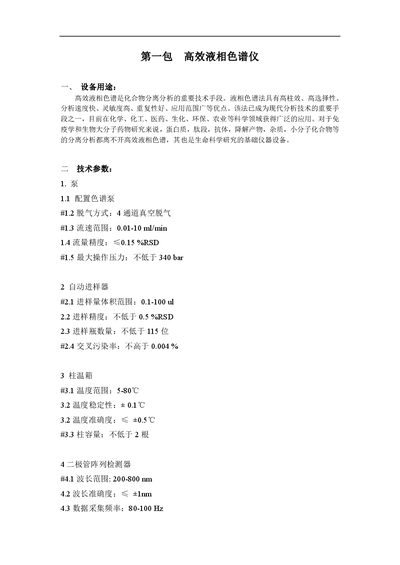

The Agilent HPLC system specification sheet outlines technical parameters, configuration, delivery, installation, and service details.
The document describes the purpose and applications of the high‑performance liquid chromatography (HPLC) system, highlighting its high column efficiency, selectivity, speed, sensitivity, and reproducibility for use in chemistry, pharmaceuticals, biochemistry, environmental and agricultural analysis.
It provides detailed technical parameters for the pump, injector, column oven, detector, and data‑processing system, as well as information on packaging, delivery schedule, installation, training, warranty, and long‑term after‑sales support. This manual is written in Chinese.
| Pump flow rate range | 0.01‑10 ml/min |
|---|---|
| Pump flow accuracy | ≤ 0.15 % RSD |
| Maximum operating pressure | ≥ 340 bar |
| Injector volume range | 0.1‑100 µL |
| Injector precision | ≥ 0.5 % RSD |
| Column oven temperature range | 5‑80 °C |
| Temperature stability | ± 0.1 °C |
| Detector wavelength range | 200‑800 nm |
| Detector wavelength accuracy | ≤ ±1 nm |
| Data acquisition frequency | 80‑100 Hz |
| Number of detector diodes | ≤ 1024 |
| Light source type | Long‑life deuterium / tungsten lamp |
The pump can operate from 0.01 to 10 ml/min.
The instrument has a three‑year warranty from the date of acceptance, with free maintenance and lifetime technical support thereafter.
The column oven can be set between 5 °C and 80 °C.
The detector operates over 200 nm to 800 nm.
