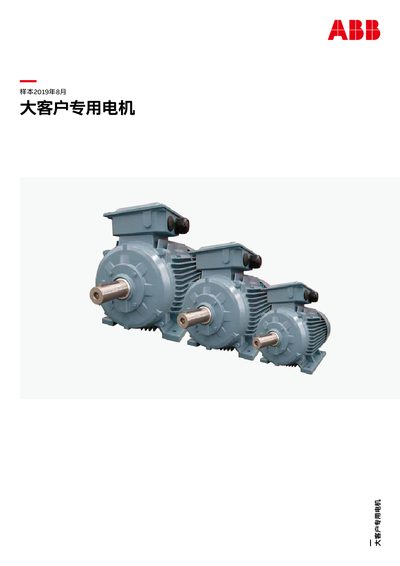

Technical data sheet for ABB M2BAK series motors, covering specifications, electrical and mechanical characteristics, and VFD compatibility.
The M2BAK series are three‑phase fully enclosed squirrel‑cage induction motors designed to meet IEC and EN standards, with IE2 and IE3 energy efficiency levels. They are offered with a range of rated powers, speeds, and torque values for industrial applications such as shipbuilding, power, petrochemical and food‑beverage sectors.
The document provides detailed product overviews, nameplate information, electrical characteristics, mechanical design, VFD drive guidance, and extensive tables of technical data for both IE2 and IE3 variants, including dimensions and performance curves. This manual is written in Chinese.
The standard terminal box is rated IP55, providing protection against dust and water ingress.
The motor can tolerate 1.5 times its rated current for up to 2 minutes.
The maximum ambient temperature is 40 °C.
They meet IE2 and IE3 efficiency classes.
