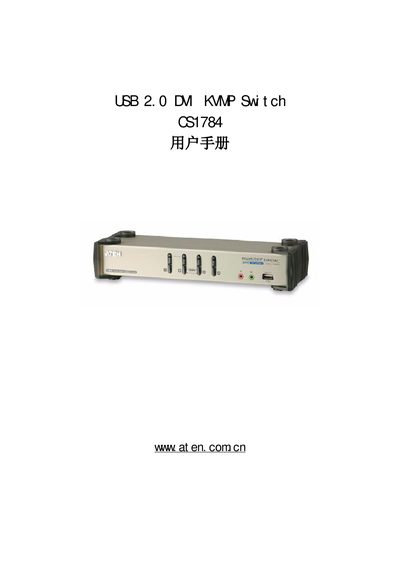

CS1784 User Manual is the product manual for ATEN's USB 2.0 DVI KVMP Switch CS1784. The manual includes the product features, packing list, installation instructions, operation instructions, troubleshooting and etc.
This manual covers the ATEN CS1784 KVMP switch, a 4‑port DVI KVM device with an integrated 2‑port USB 2.0 hub and 2.1 surround‑sound support. It explains hardware installation, basic operation, hot‑key functions, keyboard emulation for PC, Mac and Sun, and firmware update procedures.
The document also includes safety notes, product specifications, troubleshooting tips, warranty information and contact details for global technical support. This manual is written in Chinese.
| Host connections | 4 |
|---|---|
| USB 2.0 hub ports | 2 x USB Type A (front & rear) |
| Power consumption | DC 5.3 V, 9 W, 1.7 A |
| Dimensions (L×W×H) | 27.00 mm × 8.70 mm × 5.50 mm |
| Weight | 0.94 kg |
The CS1784 supports up to four host computers.
It uses a DC 5.3 V power adapter drawing 9 W (1.7 A).
Disconnect the keyboard/mouse cable from the control side and reconnect it.
