AVTrac is a floor-mount Raceway from Logitech that supports modular AAP connectivity for A/V, data, and power

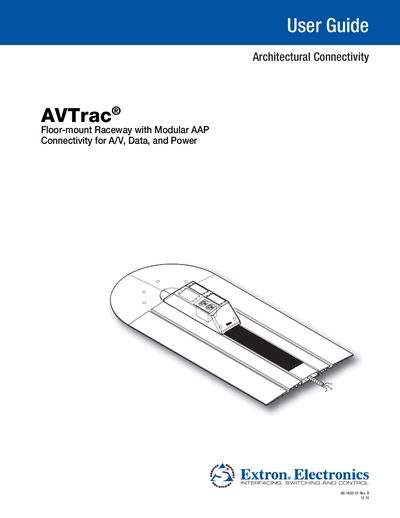

This user manual provides safety instructions, planning guidelines, and step‑by‑step installation procedures for the Extron AVTrac floor‑mount raceway system. It covers the low‑profile track, modular AAP connectivity box, optional accessories, and ADA‑compliant design.
The guide also lists technical specifications, warranty information, and reference part numbers to help installers and service personnel complete a reliable, code‑compliant installation.
| Power rating | 125 V AC, 50‑60 Hz, 20 A (max) |
|---|---|
| Mounting options | Track system (track and ramps) mountable onto base flooring, beneath finished carpeting |
| Connectivity box dimensions | 3.55" H × 4.27" W × 12.0" L |
| End ramp dimensions | 0.67" H × 9.36" L, approx. 4.5° slope |
| Side ramp dimensions | 0.67" H × 7.50" W, approx. 4.5° slope |
| Product weight (package 1 of 3) | 14.9 lb (6.7 kg) |
| Warranty | 3 years parts and labor |
| Safety certifications | c‑UL, UL |
The AC power module is rated for a maximum of 20 A.
No, the system is not designed for installation under vinyl composite tile.
It meets c‑UL and UL safety standards.
Extron provides a three‑year warranty covering parts and labor.
